Installing Interphase SNA Link Services
118 Interphase Corporation
8. The Link Service Installation dialog box reappears,
listing Interphase link services.

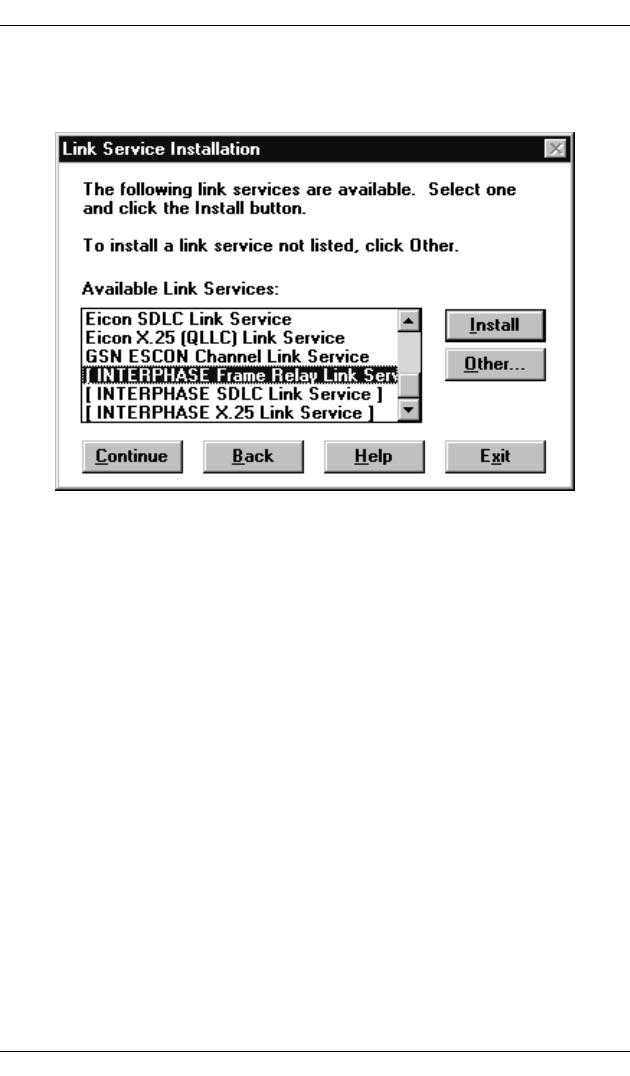

Figure 7-11. Interphase Link Service Installation Dialog Box
These include the following:
– Interphase Frame Relay link service
– Interphase SDLC link service
– Interphase X.25 link service
You can add all three Interphase link services (Frame
Relay, SDLC and X.25), but you can add only one at a
time.
9. Select the Interphase link service you want to install and
click Install.
