Chapter 6: Logging NDIS Driver Events
iSPAN Serial WAN Adapter Users Guide 103
The Filter dialog box appears.

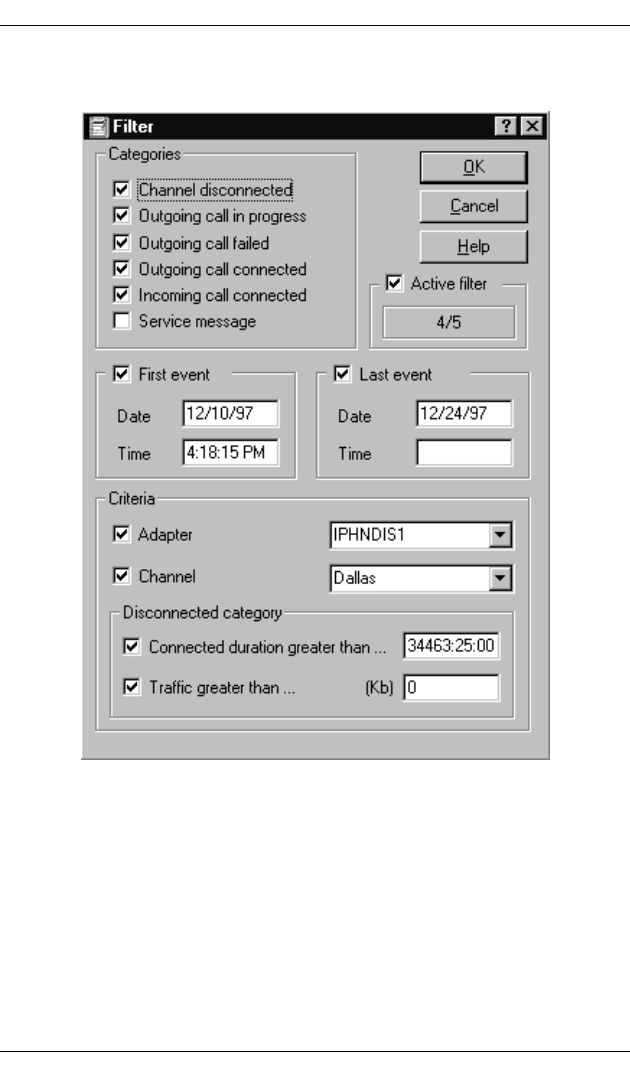

Figure 6-6. Event Filters Dialog Box
2. Enter filtering criteria to be used with your event list.
You can save these criteria when you use the Save or Save as
option on the NDIS Driver Log dialog box to save your Log
Display Parameters (.ldp) file.
For detailed information about filtering criteria, see the NDIS
Driver Log online help.
